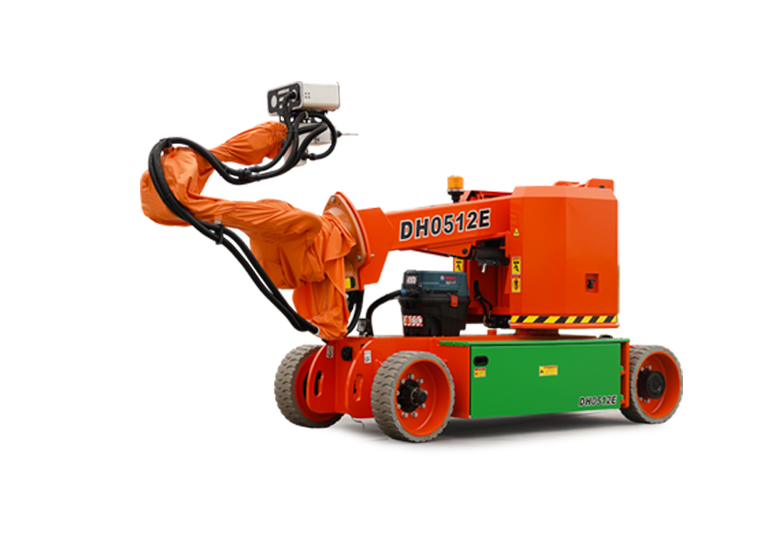

DH0512-E
DH0512-E
DH0512-E
Intelligent Positioning Drilling Robot
Previous Model | Next Model
Find a Dealer
Leave a Message
  • Product Parameter
  • Support
  • Download
  • Video
  • Dimension
    Max. Horizontal Drilling Height
    5.10m
    Max. Vertical Upward Drilling Height
    5.60m
    Min. Horizontal Drilling Height
    -0.2m
    Min. Vertical Downward Drilling Height
    -0.7m
    Overall Width(Stowed)
    1.20m
    Overall Height(Stowed)
    1.85m
    Overall Length(Stowed)
    3.30m
    Tailswing
    0m
    Main Boom Maximum Angle
    Ground Clearance
    0.13m
    Wheelbase
    2.15m
    Tyres
    22×7
  • Performance
    Travel Speed(Stowed)
    ≯4.8km/h
    Travel Speed(Raised)
    ≯0.8km/h
    Gradeability
    35%
    Maxi. Chassis Angle
    X-2.5°/Y-4.5
    Turret Rotation
    355°Non-Continuous
    Max. Wind Speed
    12.5m/s
    Turning Radius(Inside/Outside)
    2.0m/4.0m
  • Weight
    Overall Weight
    3910kg
  • Power
    Battery
    48V/520Ah
    Charger
    48V/60A
    Driving Motor
    2×32VAC/3.3kW
    Lifting Motor
    30VAC/5.0kW
    Inverter
    220VAC/6KW
    Remote Control
    Remote Receiver
    Hydraulic Tank
    23L
