DH0308E
DH0308E
DH0308E

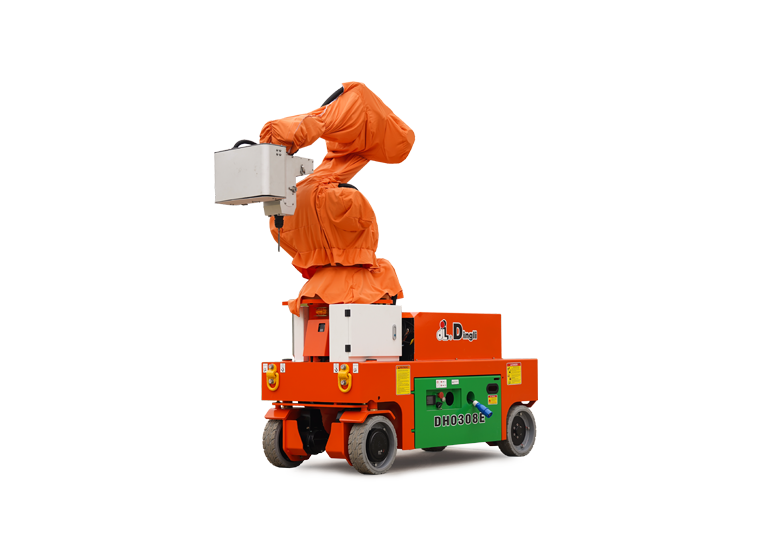

Intelligent Positioning Drilling Robot
Previous Model | Next Model
Find a Dealer
Leave a Message
  • Product Parameter
  • Support
  • Download
  • Video
  • Dimension
    Max. Horizontal Drilling Height
    3.00m
    Max. Vertical Upward Drilling Height
    3.50m
    Min. Horizontal Drilling Height
    0m
    Min. Vertical Downward Drilling Height
    -0.5m
    Overall Width(Stowed)
    0.77m
    Overall Height(Stowed)
    1.90m
    Overall Length(Stowed)
    1.74m
    Tailswing
    Main Boom Maximum Angle
    Ground Clearance
    0.12m
    Wheelbase
    1.36m
    Tyres
    323×100mm
  • Performance
    Travel Speed(Stowed)
    ≯5.5km/h
    Travel Speed(Raised)
    Gradeability
    25%
    Maxi. Chassis Angle
    Turret Rotation
    Max. Wind Speed
    Turning Radius(Inside/Outside)
    0m/1.64m
  • Weight
    Overall Weight
    1280kg
  • Power
    Battery
    48V/400A
    Charger
    48V/60A
    Driving Motor
    Lifting Motor
    Inverter
    48VDC/6kW
    Remote Control
    Remote Receiver
    Hydraulic Tank
