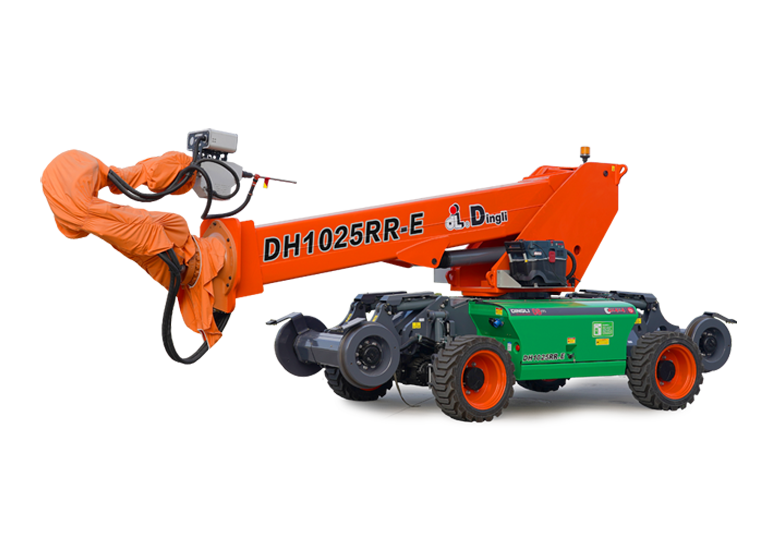

DH1025RR-E
DH1025RR-E
DH1025RR-E
Intelligent Positioning Drilling Robot
Previous Model | Next Model
Find a Dealer
Leave a Message
  • Product Parameter
  • Support
  • Download
  • Video
  • Dimension
    Max. Horizontal Drilling Height
    9.5m/10.6m
    Max. Vertical Upward Drilling Height
    10.40m/10.60m
    Min. Horizontal Drilling Height
    -0.40m/-0.20m
    Min. Vertical Downward Drilling Height
    -1.30m/-1.10m
    Overall Width(Stowed)
    2.50m
    Overall Height(Stowed)
    2.65m/2.84m
    Overall Length(Stowed)
    7.09m/6.65m
    Tailswing
    0.02m
    Main Boom Maximum Angle
    75°
    Ground Clearance
    0.29m/0.13m
    Wheelbase
    2.40m/3.38m
    Tyres
    315/55D20
  • Performance
    Travel Speed(Stowed)
    ≯6km/h / ≯12km/h
    Travel Speed(Raised)
    ≯1.1km/h / ≯2.5km/h
    Gradeability
    30%
    Maxi. Chassis Angle
    Turret Rotation
    360° Continuous
    Max. Wind Speed
    Turning Radius(Inside/Outside)
    1.65m/2.62m
  • Weight
    Overall Weight
    10950kg
  • Power
    Battery
    76.8V/628Ah
    Charger
    90-264VAC/6.6kW
    Driving Motor
    80V/30kW
    Lifting Motor
    Inverter
    220VAC/8KW / 380VAC/15KW
    Remote Control
    Remote Receiver
    Hydraulic Tank
    150L
