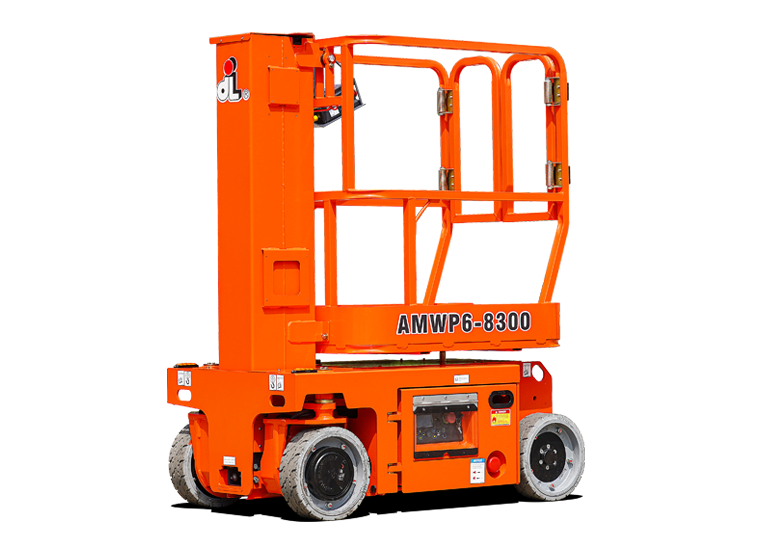

AMWP6-8300
AMWP6-8300
AMWP6-8300
Self-propelled Vertical Lifts
Previous Model | Next Model
Find a Dealer
Leave a Message
  • Product Parameter
  • Support
  • Download
  • Dimension
    Max. Working Height
    5.66m / 18'7
    Max. Platform Height
    3.66m / 12'
    Max. Horizontal Reach
    /
    Max. Up And Over Clearance
    /
    Overall Length
    1.36m / 4' 5
    Overall Width
    0.76m / 2' 6
    Overall Height
    1.67m / 5' 6
    Platform Size(Length×Width)
    1.28m×0.68m / 4' 2
    Platform Extension Size
    /
    Ground Clearance(Stowed)
    0.07m / 3
    Ground Clearance(Raised)
    0.02m / 1
    Wheelbase
    1.04m / 3'5
    Turning Radius(Inside/Outside)
    0m
    Tyres
    Φ323x100mm
  • Performance
    Safe Working Load
    /
    S.W.L On Extension
    227kg / 501lb
    Max. Occupants(Indoor/Outdoor)
    1
    Gradeability
    25%
    Max. Working Slope(X/Y)
    3.4°/3.4°
    Turret Rotation
    /
    Jib Movement
    /
    Travel Speed(Stowed)
    ≯ 4.8km/h / ≯ 2.98mph
    Travel Speed(Raised)
    ≯ 0.8km/h / ≯ 0.49mph
    Up/Down Speed
    17s/21s
  • Weight
    Overall Weight
    800kg / 1764lb
  • Power
    Lead-Acid Maintenance-Free Battery
    24V/224Ah
    Lithium Battery
    24V/150Ah
    Charger
    24VDC/30A
    Driving Motor
    2×15VAC/0.5kW
    Lifting Motor
    /
