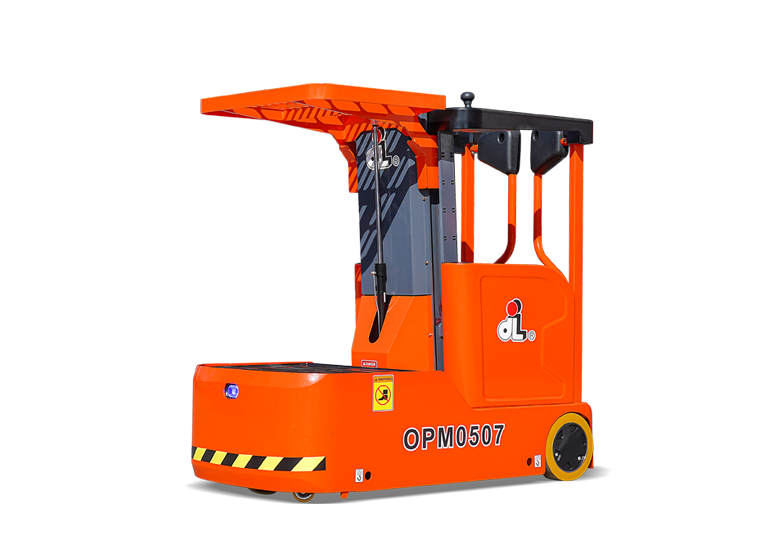

OPM0507
OPM0507
OPM0507
Oil-free&All-electric Order Picker
Previous Model | Next Model
Find a Dealer
Leave a Message
  • Product Parameter
  • Support
  • Download
  • Dimension
    Max. Working Height
    4.99m / 16ft 4in
    Max. Platform Height
    2.99m / 9ft 10in
    Overall Length
    1.44m / 4ft 9in
    Overall Width
    0.80m / 2ft 7in
    Overall Height
    1.40m / 4ft 8in
    Ground Clearance
    0.04m / 2in
    Wheelbase
    1.10m / 3ft 7in
    Turning Radius(Inside/Outside)
    Tyres(Front)
    Φ210×70mm
    Tyres(Back)
    Φ250×100mm
  • Performance
    S.W.L Of Platform(For Person)
    136kg / 300lb
    S.W.L Of Pallet(For Goods-Up)
    90kg / 198lb
    S.W.L Of Pallet(For Goods-Down)
    110kg / 243lb
    Max. Occupants(Indoor/Outdoor)
    Forward Speed(Stowed)
    ≯6.50km/h / ≯4.03mph
    Back Speed(Stowed)
    Travel Speed(Raised)
    Up/Down Speed
    11/15sec
    Gradeability
    5%/8%
    Max. Working Slope(X/Y)
  • Weight
    Overall Weight
    800kg / 1764lb
  • Power
    Lead-Acid Maintenance-Free Battery
    24V/120Ah
    Charger
    24V/15A
    Driving Motor
    0.75kW
    Lifting Motor
    2.2kW
